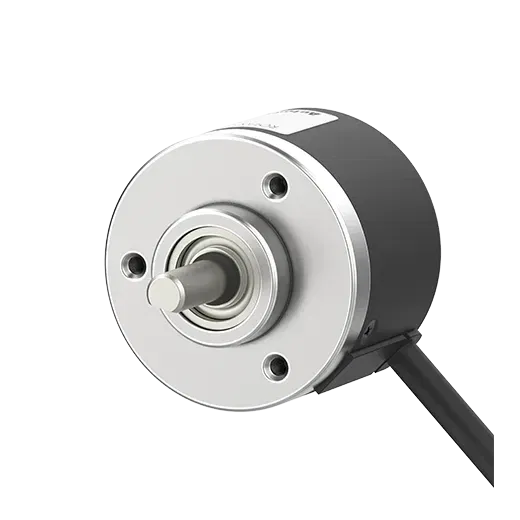

E40S6-1024-6-L-5 - 40 mm Incremental Rotary Encoders (Shaft Type)
Incremental Rotary Encoder
- SKU:
- E40S6-1024-6-L-5
- Category:
- Proximity Sensors
- Brand:
$179.24
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 120g
- Resolution
- 1024
- Accessories
- 6mm coupling standard, 8mm coupling(sold separately)
- Output phase
- A, (A^), B, (B^), Z, (Z^)
- Power voltage
- 5VDC (=) �5%(ripple P-P: max. 5%)
- Control output
- Line Driver
- Connection type
- Radial cable type
- Starting torque
- Max. 40gf.cm(max. 0.00392N.m)
- Protection structure
- IP50
- Shaft outer diameter
- 6mm
- Max. response frequency
- 300kHz
- Max. allowable revolution
- 500rpm
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 90% RH
- Environment_Ambient temperature
- 10 to 70 storage: -25 to 85
Description
The E40S6-1024-6-L-5 is a 40 mm shaft-type incremental encoder with 1024 PPR, 6 mm shaft, line driver output, and 5V DC supply voltage. The 5V supply makes it compatible with TTL-level motion controllers, CNC systems, and DSP-based drives requiring standard TTL differential encoder inputs. The shaft-type mounting suits direct coupling to motor shafts and lead screws.
