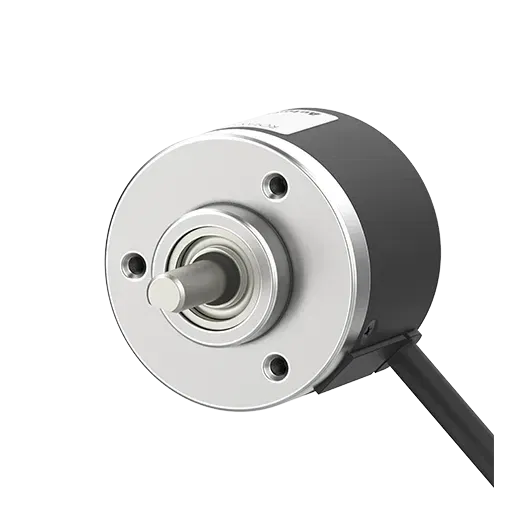

E40S6-1024-6-L-24 - 40 mm Incremental Rotary Encoders (Shaft Type)
Incremental Rotary Encoder
- SKU:
- E40S6-1024-6-L-24
- Category:
- Proximity Sensors
- Brand:
$180.77
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 120g
- Resolution
- 1024
- Accessories
- 6mm coupling standard, 8mm coupling(sold separately)
- Output phase
- A, (A^), B, (B^), Z, (Z^)
- Power voltage
- 12-24VDC (=) �5%(ripple P-P: max. 5%)
- Control output
- Line Driver
- Connection type
- Radial cable type
- Starting torque
- Max. 40gf.cm(max. 0.00392N.m)
- Protection structure
- IP50
- Shaft outer diameter
- 6mm
- Max. response frequency
- 300kHz
- Max. allowable revolution
- 500rpm
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 90% RH
- Environment_Ambient temperature
- 10 to 70 storage: -25 to 85
Description
The E40S6-1024-6-L-24 is a 40 mm shaft-type incremental rotary encoder with 1024 pulses per revolution (PPR), 6 mm shaft diameter, line driver output, and 24V DC supply. The 1024 PPR resolution provides adequate angular resolution for most motion control, conveyor speed measurement, and position feedback applications. Line driver output ensures signal integrity over long cable runs in electrically noisy industrial environments.
