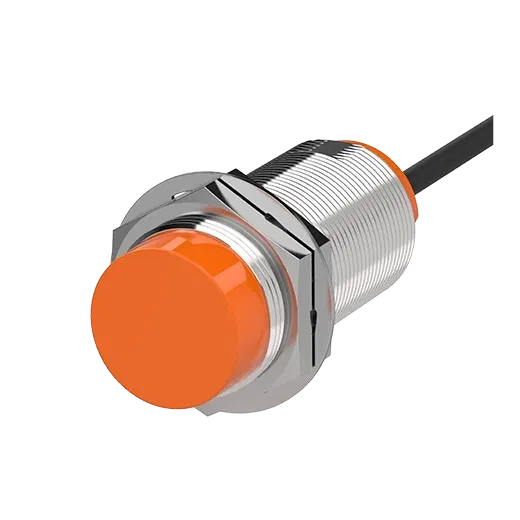

CR30-15DP - Cylindrical Capacitive Proximity Sensors
Capacitive Proximity Sensor
- SKU:
- CR30-15DP
- Category:
- Proximity Sensors
- Brand:
$74.69
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- 206g (243g)
- Material
- Brass(nickel plated)
- Control output
- PNP Normally Open
- Sensing distance
- 15mm
- Response frequency
- 50z
- Wire type and power
- DC 3-wire type 12-24VDC (=)
- Hysteresis(distance)
- Max. 20% of sensing distance
- Protection structure
- IP65
- Current specification
- Current consumption: Max.15mA
- Sensing side diameter
- 30
- Standard sensing target
- 50501mm(iron)
- Environment_Ambient humidity
- 35 to 95% RH, storage: 35 to 95% RH
- Environment_Ambient temperature
- -25 to 70storage30 to 80
Description
The CR30-15DP is an M30 cylindrical capacitive proximity sensor with a 15 mm sensing distance and PNP output. The larger M30 body provides a broader sensing face, increasing sensitivity to low-dielectric materials such as dry granules, foam, and thin plastic films. It is used in hopper level detection, fill level monitoring, and non-contact material presence sensing in food, chemical, and plastics processing.
