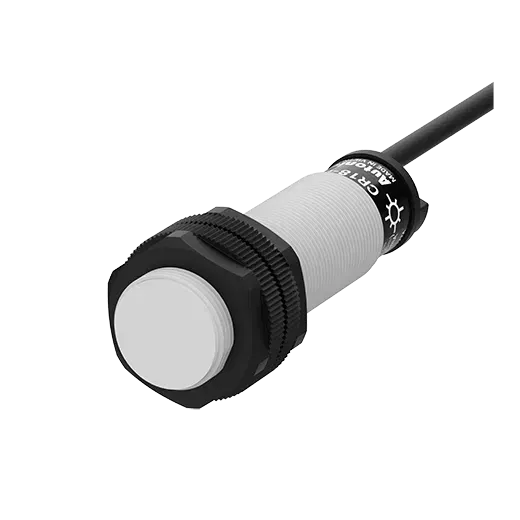

CR18-8DP - Cylindrical Capacitive Proximity Sensors
Capacitive Proximity Sensor
- SKU:
- CR18-8DP
- Category:
- Proximity Sensors
- Brand:
$68.55
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- 76g (88g)
- Material
- Polyamide 6
- Control output
- PNP Normally Open
- Sensing distance
- 8mm
- Response frequency
- 50z
- Wire type and power
- DC 3-wire type 12-24VDC (=)
- Hysteresis(distance)
- Max. 20% of sensing distance
- Protection structure
- IP66
- Current specification
- Current consumption: Max.15mA
- Sensing side diameter
- M18
- Standard sensing target
- 50501mm(iron)
- Environment_Ambient humidity
- 35 to 95% RH, storage: 35 to 95% RH
- Environment_Ambient temperature
- -25 to 70storage30 to 80
Description
The CR18-8DP is an M18 cylindrical capacitive proximity sensor with an 8 mm sensing range and PNP output. The capacitive operating principle detects dielectric material changes at the sensing face, enabling through-wall liquid level detection, powder level sensing, and non-contact detection of non-metallic objects. PNP output is compatible with sourcing PLC inputs in industrial control systems.
