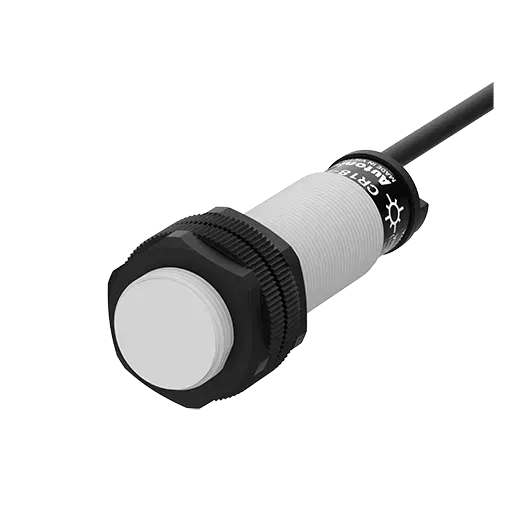

CR18-8DN2 - Cylindrical Capacitive Proximity Sensors
Capacitive Proximity Sensor
- SKU:
- CR18-8DN2
- Category:
- Proximity Sensors
- Brand:
$69.03
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- 76g (88g)
- Material
- Polyamide 6
- Control output
- NPN Normally Closed
- Sensing distance
- 8mm
- Response frequency
- 50z
- Wire type and power
- DC 3-wire type 12-24VDC (=)
- Hysteresis(distance)
- Max. 20% of sensing distance
- Protection structure
- IP66
- Current specification
- Current consumption: Max.15mA
- Sensing side diameter
- M18
- Standard sensing target
- 50501mm(iron)
- Environment_Ambient humidity
- 35 to 95% RH, storage: 35 to 95% RH
- Environment_Ambient temperature
- -25 to 70storage30 to 80
Description
The CR18-8DN2 is an M18 cylindrical capacitive proximity sensor with an 8 mm sensing distance and dual NPN output. Capacitive sensing technology enables detection of non-metallic materials including liquids, granules, powders, glass, and plastics through container walls. The dual NPN output allows simultaneous connection to two input channels or use in redundant detection configurations in level control and fill detection applications.
