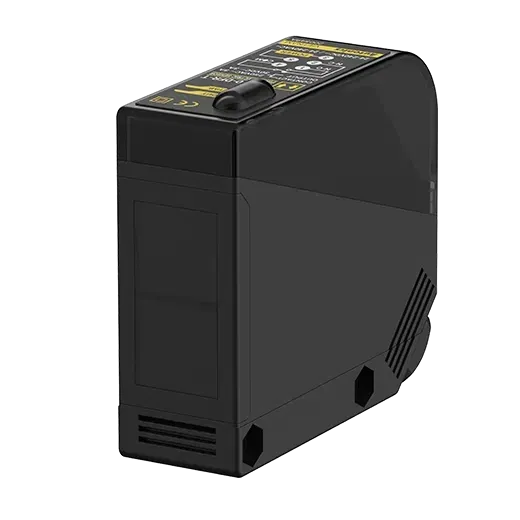

BX700-DFR - Universal AC/DC Photoelectric Sensors (Wire Terminal Type)
Photoelectric Sensor
- SKU:
- BX700-DFR
- Category:
- Proximity Sensors
- Brand:
$86.81
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 115g
- Material
- Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
- Light source
- Infrared LED(940nm)
- Sensing type
- Diffuse reflective type
- Power voltage
- 24-240VAC~ 1050z, 24-240VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 20ms
- Control output
- Relay
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque, Translucent material
- Connection type
- Terminal block type
- Sensing distance
- 70m
- Accessories_Common
- Adjuster driver, Fixing bracket, Bolts, Nuts
- Current consumption
- Max. 3VA
- Hysteresis(distance)
- Max. 20% at sensing distance
- Protection structure
- IP65EC standard)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -20 to 55, storage: -25 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BX700-DFR is a universal AC/DC photoelectric sensor with wire terminal-type connections, supporting diffuse reflective sensing at up to 700 mm range. The wire terminal termination style is suited for fixed installations where direct panel wiring without connectors is preferred. It operates across a wide supply voltage range, making it compatible with both AC and DC control systems in legacy and modern machinery.
