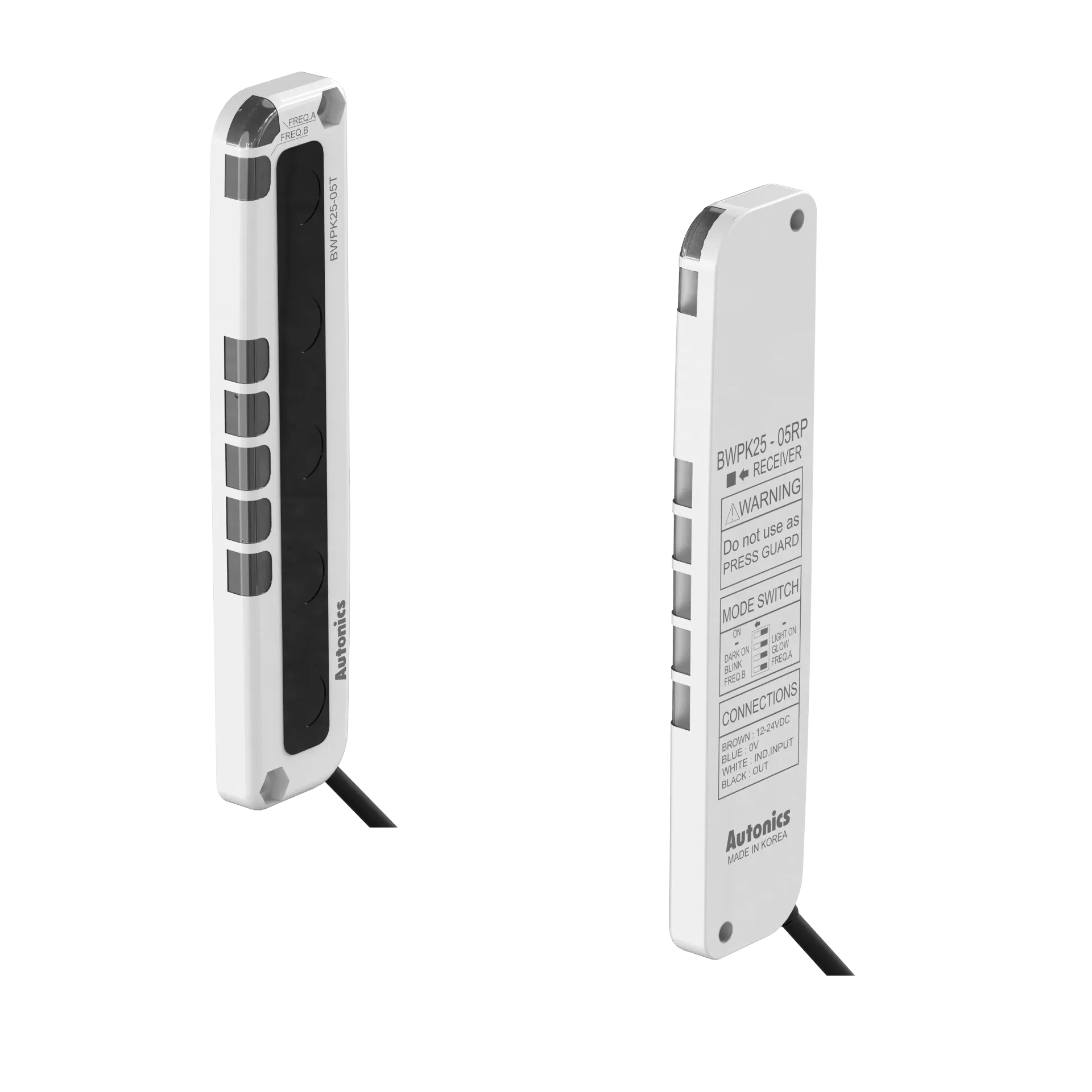

BWPK25-05P - Slim Body Area Sensors (Picking Sensors)
Picking Sensor
- SKU:
- BWPK25-05P
- Category:
- Proximity Sensors
- Brand:
$183.86
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx220g(approx. 180g)
- Material
- Case: Polycarbonatcrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(direct beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max.30ms
- Control output
- PNP open collector
- Operation mode
- Light Oark ON(set by switch)
- Sensing height
- 100mm
- Connection type
- Cable type(4, 2m)
- Sensing distance
- Long distance mode: 0.1 to 3mShort distance mode: 0.05 to 1m
- Optical axis pitch
- 25mm
- Cable specification
- 4.0mm, 4-wire, 2m(emitter: 4.0mm, 3-wire, 2m)(AWG 22, core diameter: 0.08mm, number of cores: 60 insulator out diameter1.25mm)
- Min. sensing target
- Opaque materials of min. 35mm
- Protection structure
- IP40
- Number of optical axes
- 5
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Sunlight: Max.10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BWPK25-05P is a slim-body picking area sensor with 5 beams at 25 mm pitch and PNP output, designed for item pick confirmation in warehouse automation. The PNP output is compatible with sourcing-type WMS and pick controller inputs. Its compact form allows side-by-side installation on pick shelving systems with minimal inter-sensor spacing.
