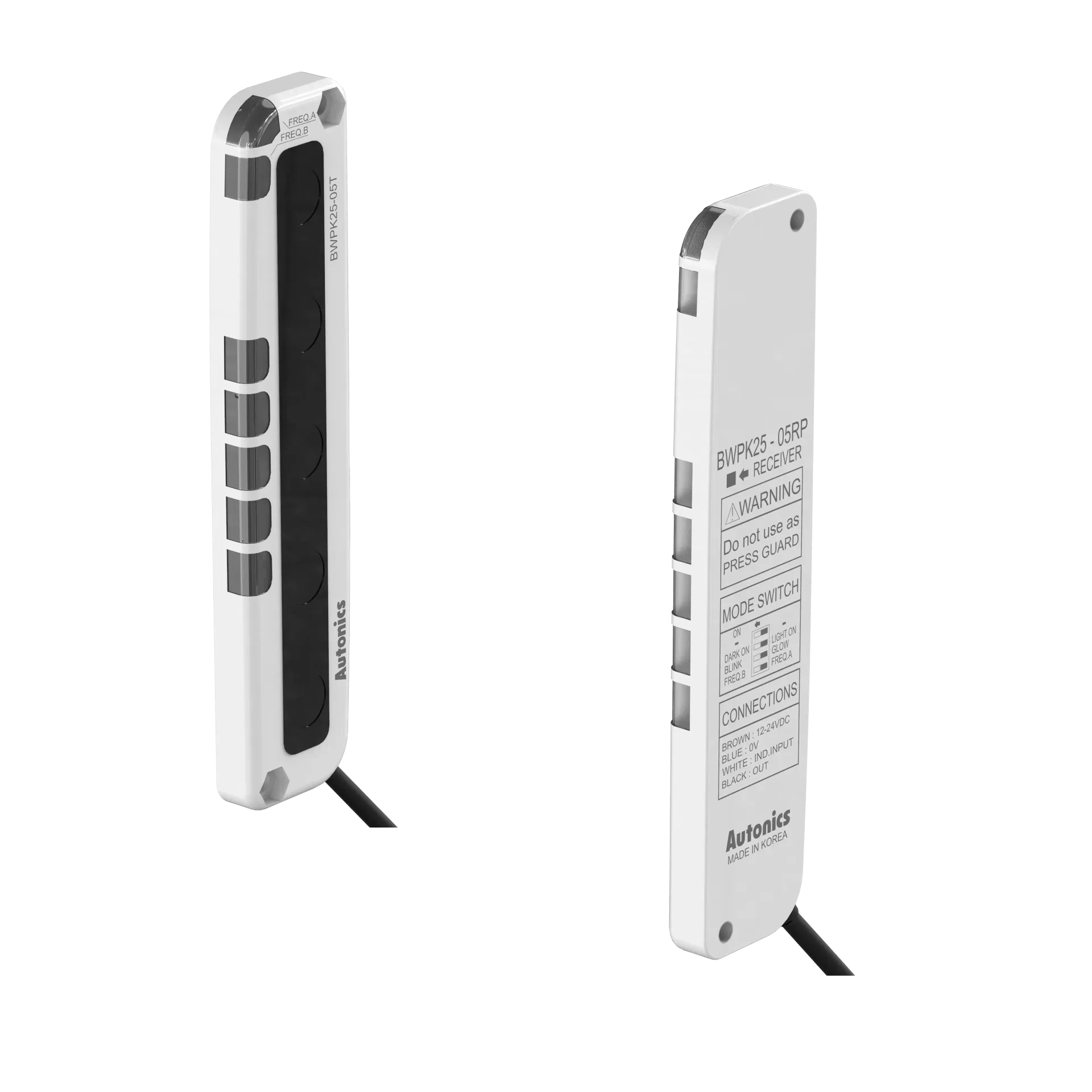

BWPK25-05 - Slim Body Area Sensors (Picking Sensors)
Picking Sensor
- SKU:
- BWPK25-05
- Category:
- Proximity Sensors
- Brand:
$184.18
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx220g(approx. 180g)
- Material
- Case: Polycarbonatcrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(direct beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max.30ms
- Control output
- NPN open collector
- Operation mode
- Light Oark ON(set by switch)
- Sensing height
- 100mm
- Connection type
- Cable type(4, 2m)
- Sensing distance
- Long distance mode: 0.1 to 3mShort distance mode: 0.05 to 1m
- Optical axis pitch
- 25mm
- Cable specification
- 4.0mm, 4-wire, 2m(emitter: 4.0mm, 3-wire, 2m)(AWG 22, core diameter: 0.08mm, number of cores: 60 insulator out diameter1.25mm)
- Min. sensing target
- Opaque materials of min. 35mm
- Protection structure
- IP40
- Number of optical axes
- 5
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Sunlight: Max.10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BWPK25-05 is a slim-body picking-type area sensor with 5 beams at 25 mm pitch designed specifically for warehouse picking confirmation applications. The narrow sensing zone and compact body allow it to detect the presence or removal of items from shelves, bins, or pick-to-light positions. NPN output integrates with warehouse management system (WMS) interfaces and pick confirmation controllers.
