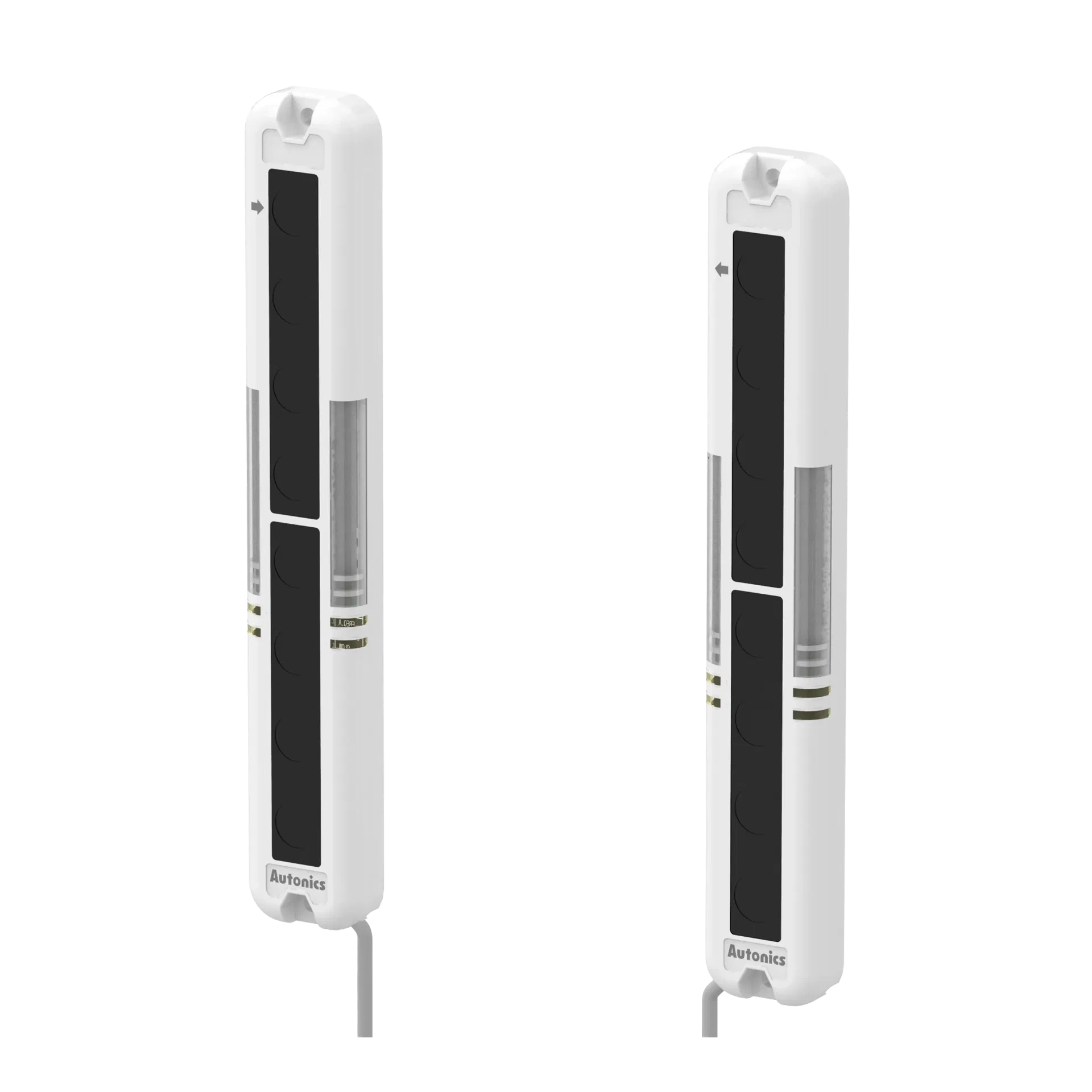

BWP20-12P - Slim Plastic Body Area Sensors
Slim Area Sensor
- SKU:
- BWP20-12P
- Category:
- Proximity Sensors
- Brand:
$294.03
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 520g(approx. 320g)
- Material
- Case: Polycarbonatcrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(direct beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 6ms(frequency B selection is max. 7ms)
- Control output
- PNP open collector
- Operation mode
- Light Oark ON(set by switch)
- Connection type
- Cable type(3.5, 3m)
- Sensing distance
- 0.1 to 5m
- Optical axis pitch
- 20mm
- Cable specification
- 3.5mm, 4-wire, 3m(emitter: 3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: 1mm)
- Min. sensing target
- Opaque material of min.30mm
- Protection structure
- IP40
- Number of optical axes
- 12
- Sensing heighotal length
- 2270
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Sunlight: Max.10,000lx(receiver illumination)
Description
The BWP20-12P is a slim plastic-body area sensor with 12 beams at 20 mm pitch, covering 240 mm, with PNP output. The compact plastic housing reduces installation weight and profile, suitable for mounting on lightweight structures or where metallic housings would cause interference. Used in label and flap detection, multi-lane conveyor sensing, and zone monitoring applications.
