BWP20-08 - Slim Plastic Body Area Sensors
Slim Area Sensor
- SKU:
- BWP20-08
- Category:
- Proximity Sensors
- Brand:
$232.74
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 480g(approx. 280g)
- Material
- Case: Polycarbonatcrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(direct beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 6ms(frequency B selection is max. 7ms)
- Control output
- NPN open collector
- Operation mode
- Light Oark ON(set by switch)
- Connection type
- Cable type(3.5, 3m)
- Sensing distance
- 0.1 to 5m
- Optical axis pitch
- 20mm
- Cable specification
- 3.5mm, 4-wire, 3m(emitter: 3.5mm, 4-wire, 3m)(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: 1mm)
- Min. sensing target
- Opaque material of min.30mm
- Protection structure
- IP40
- Number of optical axes
- 8
- Sensing heighotal length
- 1490mm
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Sunlight: Max.10,000lx(receiver illumination)
Description

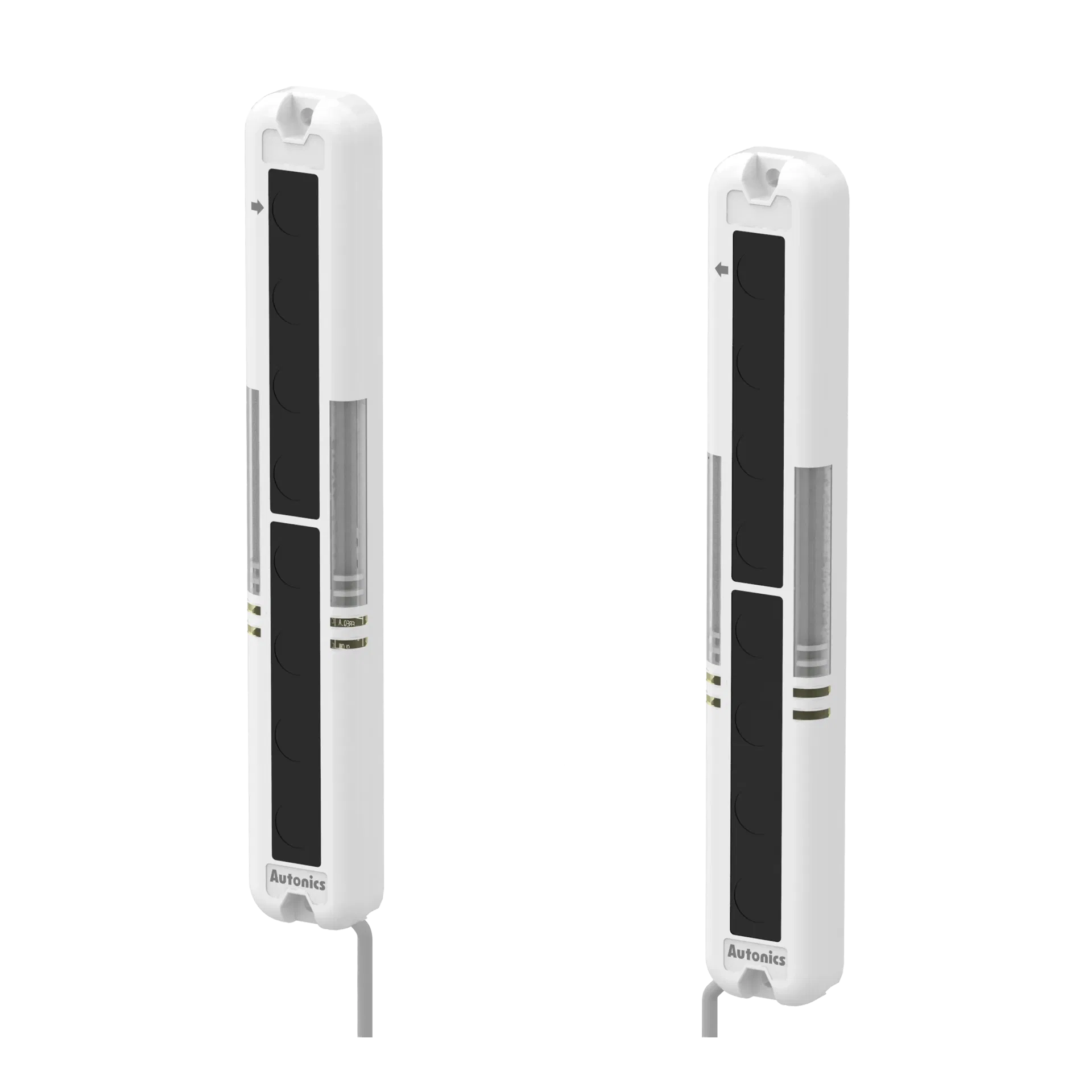

The BWP20-08 is a slim plastic-body area sensor with 8 beams and 20 mm pitch, covering 160 mm with a lightweight, low-profile housing. The plastic body reduces weight and allows use in environments where metal housings are undesirable. NPN output supports standard PLC sinking inputs for object detection in food processing, packaging, and clean-room automation.
