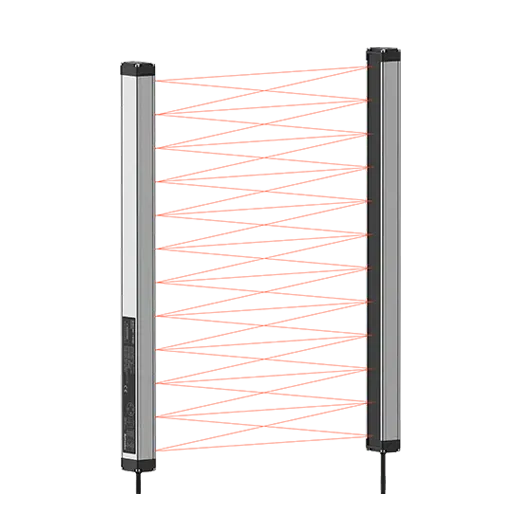

BWC40-12H - Cross-Beam Area Sensors
Cross-Beam Sensor
- SKU:
- BWC40-12H
- Category:
- Proximity Sensors
- Brand:
$834.90
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
- Material
- Case: Aluminum, Sensing part and indicator: Acrylic
- Accessories
- Bracket A: 4, Bracket B: 4, Fixing bolt: 8
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(cross beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max50s
- Control output
- NPN open collector
- Operation mode
- Light ON
- Sensing height
- 440mm
- Connection type
- Cable connector type(5,300mm, M12)
- Sensing distance
- 1 to 7m
- Optical axis pitch
- 40mm
- Cable specification
- 5mm, 4-wire,300mm, M12 connector
- Min. sensing target
- Opaque material of min50m
- Protection structure
- IP67(IEC standard)
- Number of optical axes
- 12
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Ambient light: Max50,000lx(receiver illumination)
Description
The BWC40-12H is a cross-beam area sensor system with 12 beams in a crossed optical arrangement at 40 mm pitch, enabling two-dimensional zone detection. The cross-beam configuration detects objects entering from multiple directions within the sensing field, providing more comprehensive zone coverage than linear area sensors. Applicable in robotic safety zones, machine access detection, and 2D presence confirmation.
