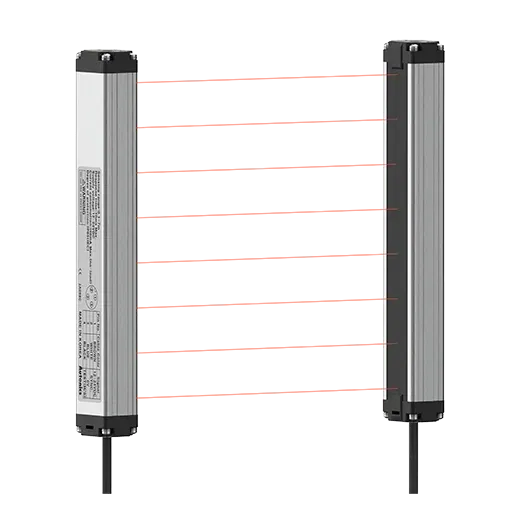

BW40-04P - General Purpose Area Sensors
Area Sensor
- SKU:
- BW40-04P
- Category:
- Proximity Sensors
- Brand:
$409.47
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- BW40-24: Approx. 2.1kg(approx. 1.4kg)
- Material
- Case: Aluminum Front cover, sensing part: Acrylic
- Accessories
- Bracket A: 4, Bracket B: 4, Fixing bolt: 8
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(direct beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max.10ms
- Control output
- PNP open collector
- Operation mode
- Light ON
- Connection type
- Cable connector type
- Sensing distance
- 0.1 to 7m
- Optical axis pitch
- 40mm
- Cable specification
- 5mm, 4-wire,300mm, M12 connector
- Min. sensing target
- Opaque material of min50m
- Protection structure
- IP65EC standard)
- Number of optical axes
- 4
- Sensing heighotal length
- 1260m
- Environment_Ambient humidity
- 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Ambient light: Max50,000lx(receiver illumination)
Description
The BW40-04P is a general-purpose area sensor with 4 beams at 40 mm pitch, providing an 120 mm detection zone with PNP output. The wider beam spacing is suited for detecting larger objects or for applications where fewer detection points are required. Commonly deployed in box detection, large part presence sensing, and entry/exit zone monitoring.
