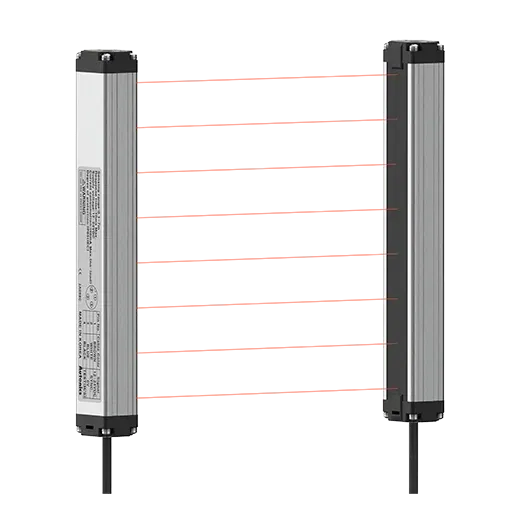

BW20-32 - General Purpose Area Sensors
Area Sensor
- SKU:
- BW20-32
- Category:
- Proximity Sensors
- Brand:
$1,296.92
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- BW20-48: Approx. 2.1kg(approx. 1.4kg)
- Material
- Case: Aluminum Front cover, sensing part: Acrylic
- Accessories
- Bracket A: 4, Bracket B: 4, Fixing bolt: 8
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(direct beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max.10ms
- Control output
- NPN open collector
- Operation mode
- Light ON
- Connection type
- Cable connector type
- Sensing distance
- 0.1 to 7m
- Optical axis pitch
- 20mm
- Cable specification
- 5mm, 4-wire,300mm, M12 connector
- Min. sensing target
- Opaque material of min.30mm
- Protection structure
- IP65EC standard)
- Number of optical axes
- 32
- Sensing heighotal length
- 6240mm
- Environment_Ambient humidity
- 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Ambient light: Max50,000lx(receiver illumination)
Description
The BW20-32 is a general-purpose area sensor with 32 beams at 20 mm pitch, providing a 640 mm total detection height. The high beam count makes it suitable for taller object detection applications, multi-level presence sensing, and wide-zone access detection. NPN/PNP output options support broad PLC compatibility for conveyor and palletizer monitoring.
