BW20-16 - General Purpose Area Sensors
Area Sensor
- SKU:
- BW20-16
- Category:
- Proximity Sensors
- Brand:
$690.89
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- BW20-48: Approx. 2.1kg(approx. 1.4kg)
- Material
- Case: Aluminum Front cover, sensing part: Acrylic
- Accessories
- Bracket A: 4, Bracket B: 4, Fixing bolt: 8
- Light source
- Infrared LED(850m modulated)
- Sensing type
- Through-beam type(direct beam)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max.10ms
- Control output
- NPN open collector
- Operation mode
- Light ON
- Connection type
- Cable connector type
- Sensing distance
- 0.1 to 7m
- Optical axis pitch
- 20mm
- Cable specification
- 5mm, 4-wire,300mm, M12 connector
- Min. sensing target
- Opaque material of min.30mm
- Protection structure
- IP65EC standard)
- Number of optical axes
- 16
- Sensing heighotal length
- 3020mm
- Environment_Ambient humidity
- 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
- Environment_Ambient temperature
- 10 to 55 storage: -20 to 60
- Environment_Ambient illumination
- Ambient light: Max50,000lx(receiver illumination)
Description

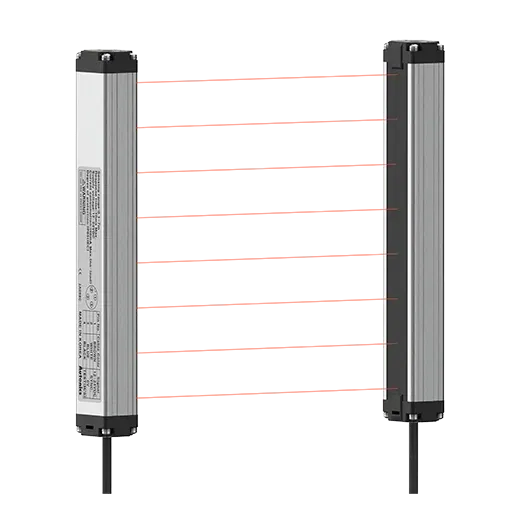

The BW20-16 is a general-purpose area sensor with 16 beams at 20 mm pitch, offering a 320 mm detection height. The multi-beam arrangement enables detection of objects within a defined zone, outputting a signal when any beam is interrupted. It is used in part presence detection, pick confirmation, and zone access detection on automated assembly and storage equipment.
