BTF30-DDTL-P - Ultra-Compact, Thin Type Photoelectric Sensors

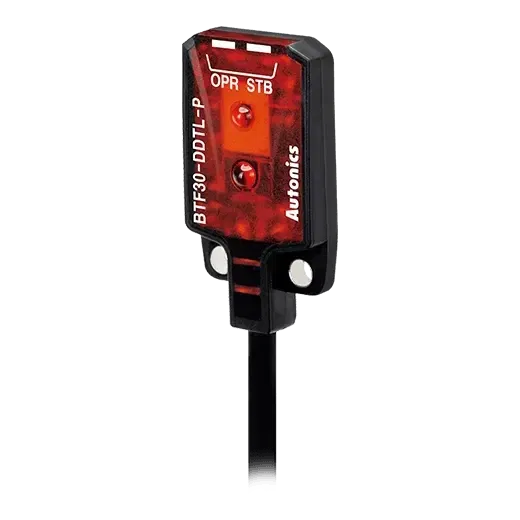

Thin Photoelectric Sensor
- SKU:
- BTF30-DDTL-P
- Category:
- Proximity Sensors
- Brand:
$72,637.50
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 40g (approx. 25g)
- Material
- Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,bracket: SU304(steel use stainless304), bolt: carbon steel, sleeve: SU304(steel use stainless304)
- Accessories
- Fixing bracket, M2 bolt: 2
- Light source
- Red LED(65)
- Sensing type
- Diffuse reflective type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- PNP open collector
- Operation mode
- Light ON
- Sensing target
- Opaque, Translucent material(min. sensing target: 0.2mm)
- Connection type
- Cable type(2.5, 2m)
- Sensing distance
- 5 to30mm
- Current consumption
- Max. 20mA
- Hysteresis(distance)
- Max. 20% at rated sensing distance
- Protection structure
- IP67
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 55 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max.10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BTF30-DDTL-P is an ultra-compact thin-type diffuse reflective photoelectric sensor with a 30 mm detection range, PNP output, and light-on operation. The minimal housing depth enables flush-mounting inside tooling plates, PCB fixtures, and component nests for precise part presence and seat verification. Applicable in SMT, semiconductor wafer handling, and micro-component assembly.
