AUTONICS, BTF1M-TDTL, PHOTO SENSOR, THROUGH BEAM, 1M SENSING DISTANCE, LIGHT ON, NPN, 12-24VDC, 0.2KG
Thin Photoelectric Sensor
- SKU:
- BTF1M-TDTL
- Category:
- Proximity Sensors
- Brand:
$31.98
In stock
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 70(approx. 40g)
- Material
- Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,bracket: SU304(steel use stainless304), bolt: carbon steel, sleeve: SU304(steel use stainless304)
- Accessories
- Fixing bracket, M2 bolt: 4
- Light source
- Red LED(65)
- Sensing type
- Through-beam type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- sap_item_code
- H-BTF1M-TDTL
- sap_synced_at
- 2026-10-21T16:09:58.399Z
- Control output
- NPN open collector
- Operation mode
- Light ON
- Sensing target
- Opaque material of min. 2mm
- Connection type
- Cable type(2.5, 2m)
- Sensing distance
- 1m
- Current consumption
- Emitteeceiver: Max. 20mA
- Protection structure
- IP67
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 55 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max.10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description

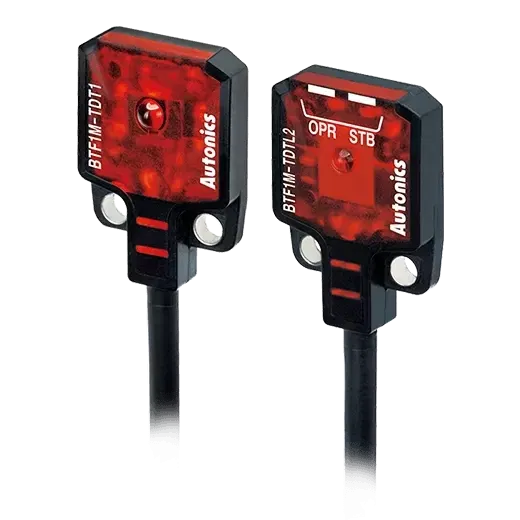

The BTF1M-TDTL is an ultra-compact thin-type thru-beam photoelectric sensor with a 1-meter sensing range and light-on switching. The slim flat housing provides a very low installation profile, ideal for applications between conveyor belt levels or inside thin machinery frames. Reliable beam alignment and fast response make it suitable for high-cycle counting and edge detection.
