BTF1M-TDTD - Ultra-Compact, Thin Type Photoelectric Sensors
Thin Photoelectric Sensor
- SKU:
- BTF1M-TDTD
- Category:
- Proximity Sensors
- Brand:
$83.69
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 70(approx. 40g)
- Material
- Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,bracket: SU304(steel use stainless304), bolt: carbon steel, sleeve: SU304(steel use stainless304)
- Accessories
- Fixing bracket, M2 bolt: 4
- Light source
- Red LED(65)
- Sensing type
- Through-beam type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- NPN open collector
- Operation mode
- Dark ON
- Sensing target
- Opaque material of min. 2mm
- Connection type
- Cable type(2.5, 2m)
- Sensing distance
- 1m
- Current consumption
- Emitteeceiver: Max. 20mA
- Protection structure
- IP67
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 55 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max.10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description

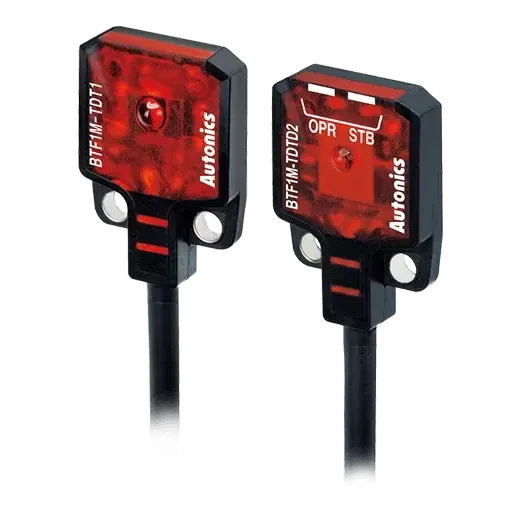

The BTF1M-TDTD is an ultra-compact thin-type thru-beam photoelectric sensor with a 1-meter sensing range and dark-on output switching. The slim profile emitter and receiver pair can be installed in narrow gaps, between closely spaced components, or in slots where traditional cylindrical sensors cannot be mounted. Suitable for web break detection, film edge sensing, and slim-profile conveyor systems.
