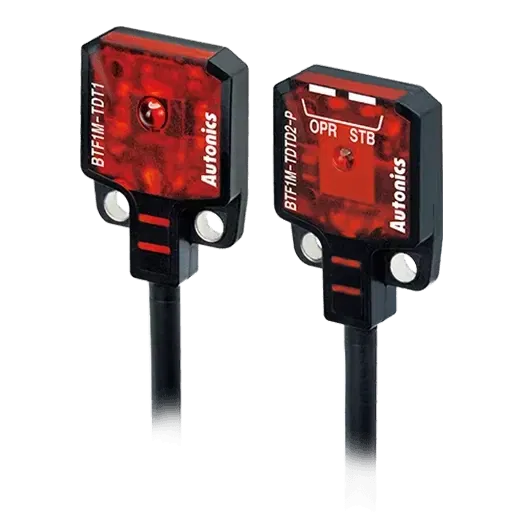

BTF1M-TDTD-P - Ultra-Compact, Thin Type Photoelectric Sensors
Thin Photoelectric Sensor
- SKU:
- BTF1M-TDTD-P
- Category:
- Proximity Sensors
- Brand:
$86.13
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 70(approx. 40g)
- Material
- Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,bracket: SU304(steel use stainless304), bolt: carbon steel, sleeve: SU304(steel use stainless304)
- Accessories
- Fixing bracket, M2 bolt: 4
- Light source
- Red LED(65)
- Sensing type
- Through-beam type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- PNP open collector
- Operation mode
- Dark ON
- Sensing target
- Opaque material of min. 2mm
- Connection type
- Cable type(2.5, 2m)
- Sensing distance
- 1m
- Current consumption
- Emitteeceiver: Max. 20mA
- Protection structure
- IP67
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 55 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max.10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BTF1M-TDTD-P is an ultra-compact thin-type thru-beam photoelectric sensor with a 1-meter range, PNP output, and dark-on switching logic. The PNP output suits sourcing PLC inputs, and the ultra-thin housing enables installation in applications with severe height constraints. Used in print-and-apply systems, label gap detection, and flat material handling.
