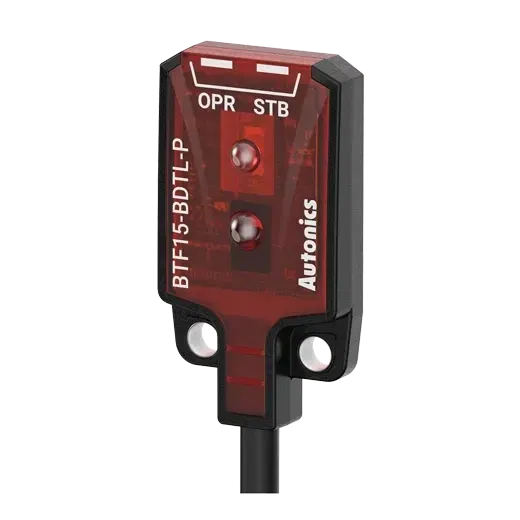

BTF15-BDTL-P - Ultra-Compact, Thin Type Photoelectric Sensors
Thin Photoelectric Sensor
- SKU:
- BTF15-BDTL-P
- Category:
- Proximity Sensors
- Brand:
$86.45
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 40g (approx. 25g)
- Material
- Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,bracket: SU304(steel use stainless304), bolt: carbon steel, sleeve: SU304(steel use stainless304)
- Accessories
- Fixing bracket, M2 bolt: 2
- Light source
- Red LED(65)
- Sensing type
- BGS reflective type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- PNP open collector
- Operation mode
- Light ON
- Sensing target
- Opaque, Translucent material(min. sensing target: non-illuminated objects of 0.2mm)
- Connection type
- Cable type(2.5, 2m)
- Sensing distance
- 1 to 15mm
- Current consumption
- Max. 20mA
- Hysteresis(distance)
- Max. 5% at sensing distance
- Protection structure
- IP67
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 55 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max.10,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BTF15-BDTL-P is an ultra-compact thin-type photoelectric sensor with a 15 mm sensing distance, PNP output, and light-on operation. The flat, low-profile housing is designed for mounting in extremely shallow spaces such as inside machine tool fixtures, between conveyor rollers, or within precision gauging equipment. Its small footprint enables high-density sensor layout without interference.
