BRQM20M-TDTA-P - Cylindrical Photoelectric Sensors

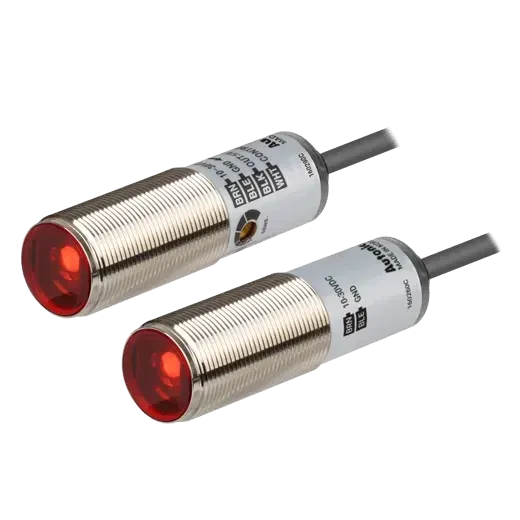

Cylindrical Photoelectric Sensor
- SKU:
- BRQM20M-TDTA-P
- Category:
- Proximity Sensors
- Brand:
$92.82
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx220g (approx. 140g)
- Material
- Case: brass, Ni-plate?Lens, Lens cover: polymethyl methacrylate acrylic
- Light source
- Red LED(660m)
- Sensing type
- Through-beam type
- Power voltage
- 1030VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- PNP open collector
- Operation mode
- Light Oark ON(set by control wire)
- Sensing target
- Opaque material of min. 7mm
- Connection type
- Cable type(4, 2m)
- Sensing distance
- 20m
- Current consumption
- Emitteeceiver: Max. 20mA
- Protection structure
- IP67(IEC standard)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 60, storage30 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BRQM20M-TDTA-P is a cylindrical thru-beam photoelectric sensor with a 20-meter sensing range, PNP output, and auto-teach functionality. The extended sensing distance makes it applicable for large area detection, perimeter security sensing, and detection across wide conveyor systems or factory aisles. Auto-teach simplifies alignment and threshold calibration during installation.
