BRQM100-DDTA-P - Cylindrical Photoelectric Sensors

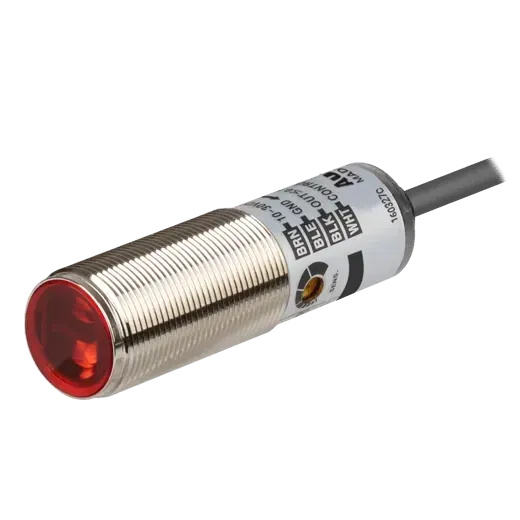

Cylindrical Photoelectric Sensor
- SKU:
- BRQM100-DDTA-P
- Category:
- Proximity Sensors
- Brand:
$74.01
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 150(approx. 70
- Material
- Case: brass, Ni-plate?Lens, Lens cover: polymethyl methacrylate acrylic
- Light source
- Infrared LED(850m)
- Sensing type
- Diffuse reflective type
- Power voltage
- 1030VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- PNP open collector
- Operation mode
- Light Oark ON(set by control wire)
- Sensing target
- Opaque, Translucent material
- Connection type
- Cable type(4, 2m)
- Sensing distance
- 100mm
- Current consumption
- Max.30mA
- Hysteresis(distance)
- Max. 20% at rated sensing distance
- Protection structure
- IP67(IEC standard)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 60, storage30 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BRQM100-DDTA-P is a cylindrical diffuse reflective photoelectric sensor with a 100 mm sensing range, PNP output, and auto-teach sensitivity setting. The teach-in function allows the operator to set the detection threshold by simply pressing a button in the presence of the target object, eliminating the need for manual potentiometer adjustment. Suitable for object detection in diverse industrial settings.
