BR200-DDTN - Cylindrical Photoelectric Sensors (Narrow Beam Reflective Type)
Cylindrical Photoelectric Sensor
- SKU:
- BR200-DDTN
- Category:
- Proximity Sensors
- Brand:
$851.50
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 160(approx. 120g)
- Material
- Case - Brass, Ni-plateSensing part - Polycarbonate lens
- Accessories
- M18 fixing nut: 2, washer:1, adjustment screwdriver
- Light source
- Infrared LED(850m)
- Sensing type
- Narrow beam reflective type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- NPN open collector
- Operation mode
- Light Oark ON(set by control wire)
- Sensing target
- Opaque, Translucent material
- Connection type
- Cable type(5, 2m)
- Sensing distance
- 200mm
- Current consumption
- Max. 45mA
- Hysteresis(distance)
- Max. 20% at rated sensing distance
- Protection structure
- IP66
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 to 60 storage: -25 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description

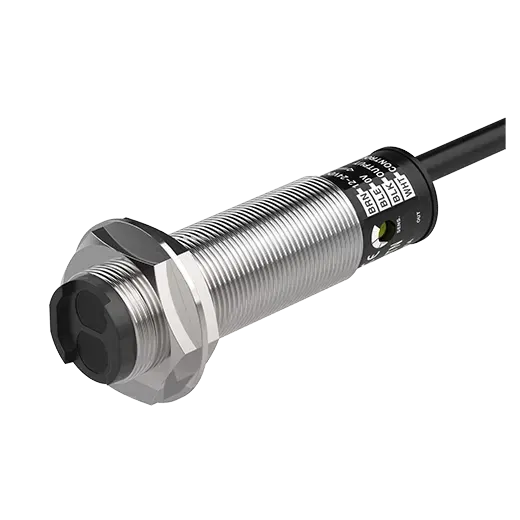

The BR200-DDTN is a cylindrical diffuse reflective photoelectric sensor with a 200 mm sensing range and a narrow beam pattern for precise spot detection. Its cylindrical M18 or similar housing allows installation via standard threaded mounting brackets. Narrow beam optics improve detection accuracy for small objects or for sensing between closely adjacent targets, commonly used in electronic component handling and pharmaceutical packaging.
