BPS3M-TDT - Flat Type Photoelectric Sensors
Flat Photoelectric Sensor
- SKU:
- BPS3M-TDT
- Category:
- Proximity Sensors
- Brand:
$73.49
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 66g
- Material
- Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
- Light source
- Infrared LED(850m)
- Sensing type
- Through-beam type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- NPN open collector
- Operation mode
- Dark ON
- Sensing target
- Opaque material of min. 5mm
- Connection type
- Cable type(3, 2m)
- Sensing distance
- 3m
- Current consumption
- Emitteeceiver: Max. 20mA
- Protection structure
- IP67
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 90% RH
- Environment_Ambient temperature
- -25 to 65 storage: -25 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description

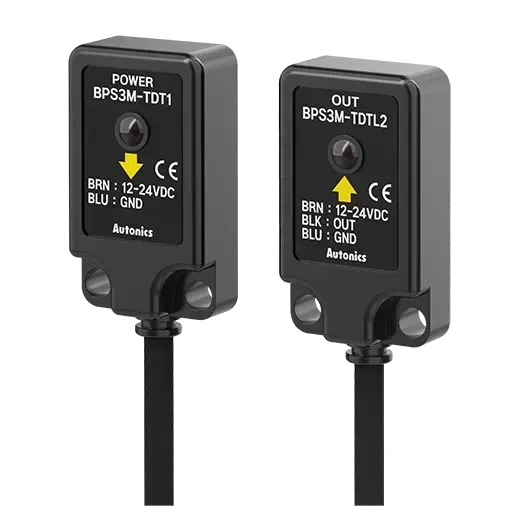

The BPS3M-TDT is a flat-type thru-beam photoelectric sensor with a 3-meter sensing range, featuring an ultra-thin housing profile for installation in height-restricted locations. The flat form factor makes it ideal for detecting objects on flat conveyor surfaces, inside thin machinery enclosures, or between closely stacked components. NPN/PNP output options ensure compatibility with standard PLC input modules.
