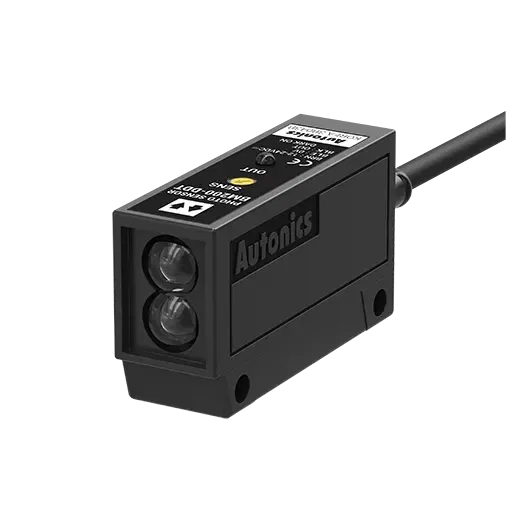

BM200-DDT - Economical General-Purpose Photoelectric Sensors
Photoelectric Sensor
- SKU:
- BM200-DDT
- Category:
- Proximity Sensors
- Brand:
$60.52
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Material
- Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
- Light source
- Infrared LED(940nm)
- Sensing type
- Diffuse reflective type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 3ms
- Control output
- NPN open collector
- Operation mode
- Light ON(option: Dark ON)
- Sensing target
- Opaque, Translucent material
- Connection type
- Cable type(4, 2m)
- Sensing distance
- 200mm
- Current consumption
- Max. 40mA
- Hysteresis(distance)
- Max.10% at sensing distance
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Unit weight (packaged weight)
- 88 g (156 g)
- Environment_Ambient temperature
- 10 to 60 storage: -25 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BM200-DDT is an economical general-purpose diffuse reflective photoelectric sensor with a 200 mm sensing distance. Designed for cost-effective deployment in standard industrial applications, it offers reliable object detection with NPN/PNP selectable output and a compact rectangular housing. It is well-suited for general conveyor detection, counting, and presence sensing where premium performance features are not required.
