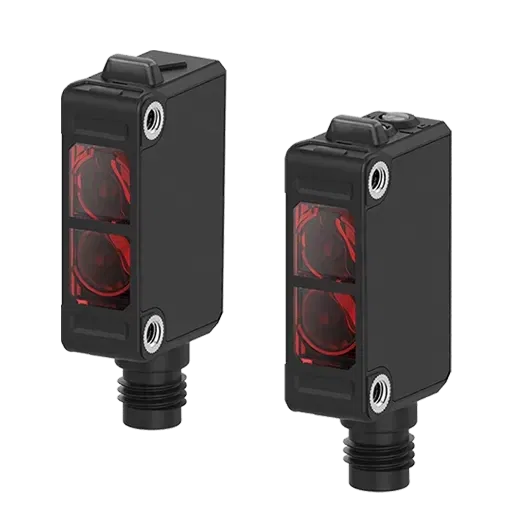

AUTONICS, BJX10M-TDT-C-P, PHOTOELECTRIC SENSOR, BJX SERIES, THROUGH-BEAM, 10 M SENSING DISTANCE, PNP TRANSISTOR OUTPUT, 12–24 V DC, 0.2KG
Photoelectric Sensor
- SKU:
- BJX10M-TDT-C-P
- Category:
- Proximity Sensors
- Brand:
$37.39
In stock
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 65approx. 12g)
- Material
- Case: polycarbonate?LED CAP: polycarbonateLens, Lens cover: polymethyl methacrylate
- Light source
- Red LED(660m)
- Sensing type
- Through-beam type
- Power voltage
- 1030VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- sap_item_code
- H-BJX10M-TDT-C-P
- sap_synced_at
- 2026-10-19T20:36:14.186Z
- Control output
- PNP open collector
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque material of min. 15mm
- Connection type
- 4mm, 3-wire, 2m (emitter of through-beam type: 4mm, 2-wire, 2m)(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: 1mm)
- Sensing distance
- 10m
- Accessories_Common
- Mounting bracket, M3 bolt: 4, adjustment screwdriver
- Current consumption
- Emitteeceiver: Max. 20mA
- Protection structure
- IP65EC standard)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 60 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BJX10M-TDT-C-P is a compact long-distance thru-beam photoelectric sensor with a 10-meter sensing range, PNP output, and connector-style termination. The extended detection distance combined with a compact body enables installation in space-constrained environments while maintaining a wide detection span. Suitable for object detection across conveyor gaps, loading docks, and large automated cell boundaries.
