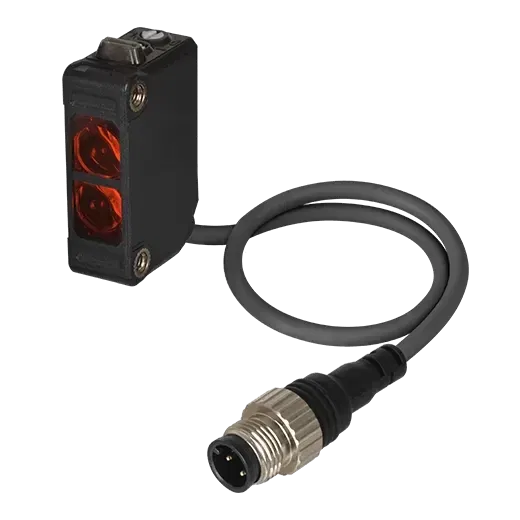

BJR100-DDT-W-F - Oil-Resistant/Oil-Proof Photoelectric Sensors
Oil-Resistant Sensor
- SKU:
- BJR100-DDT-W-F
- Category:
- Proximity Sensors
- Brand:
$159.81
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 80g(approx.30g)
- Material
- Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
- Light source
- Infrared LED(850m)
- Sensing type
- Diffuse reflective type
- Power voltage
- 1030VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- NPN open collector
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque, Translucent material
- Connection type
- 4mm, 3-wire,300mm (emitter of through-beam type: 4mm, 2-wire,300mm), M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: 1mm)
- Sensing distance
- 100mm
- Accessories_Common
- Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
- Current consumption
- Max.30mA
- Hysteresis(distance)
- Max. 20% at rated sensing distance
- Oil resistanil proof
- Oil proof type
- Protection structure
- IP67(IEC standard), IP67F(JEM standard)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 60, storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BJR100-DDT-W-F is an oil-resistant and oil-proof diffuse reflective photoelectric sensor with a 100 mm sensing range. Its sealed housing and oil-resistant cable are specifically designed for use in metal cutting, grinding, and wash-down environments where exposure to coolants, lubricants, and cleaning agents is unavoidable. PNP/NPN output options and a robust IP67-rated enclosure ensure long-term reliability in harsh machining environments.
