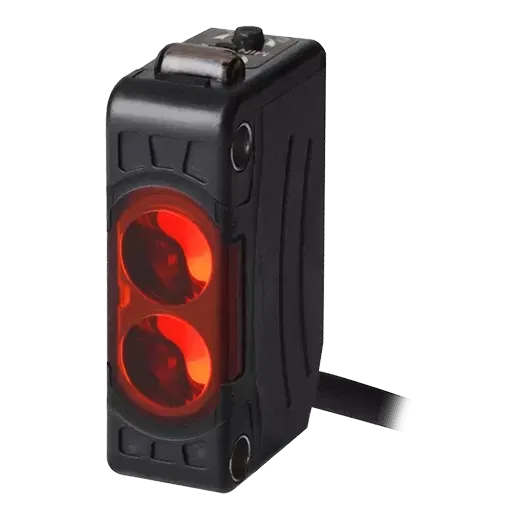

BJ300-DDT-P - Compact High Performance Photoelectric Sensors
Photoelectric Sensor
- SKU:
- BJ300-DDT-P
- Category:
- Proximity Sensors
- Brand:
$65,747.50
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 70(approx. 45g)
- Material
- Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SU304(steel use stainless304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate
- Light source
- Red LED(660m)
- Sensing type
- Diffuse reflective type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- PNP open collector
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque, Translucent material
- Connection type
- Cable type(3.5, 2m)
- Sensing distance
- 300mm
- Accessories_Common
- Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
- Current consumption
- Max.30mA
- Hysteresis(distance)
- Max. 20% of sensing distance
- Protection structure
- IP65
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 55 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BJ300-DDT-P is a compact high-performance diffuse reflective photoelectric sensor with a 300 mm sensing distance and PNP output. It includes background suppression for accurate object detection independent of background color or reflectivity. The compact body allows mounting in confined areas, and the teach-in sensitivity setting simplifies commissioning on packaging, labeling, and part presence detection systems.
