BJ10M-TDT - Compact High Performance Photoelectric Sensors
Photoelectric Sensor
- SKU:
- BJ10M-TDT
- Category:
- Proximity Sensors
- Brand:
$80.80
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 115g (approx. 90g)
- Material
- Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SU304(steel use stainless304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate
- Light source
- Red LED(660m)
- Sensing type
- Through-beam type
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- NPN open collector
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque material of min. 12mm
- Connection type
- Cable type(3.5, 2m)
- Sensing distance
- 10m
- Accessories_Common
- Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver
- Current consumption
- Emitteeceiver: Max. 20mA
- Protection structure
- IP65
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 55 storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description

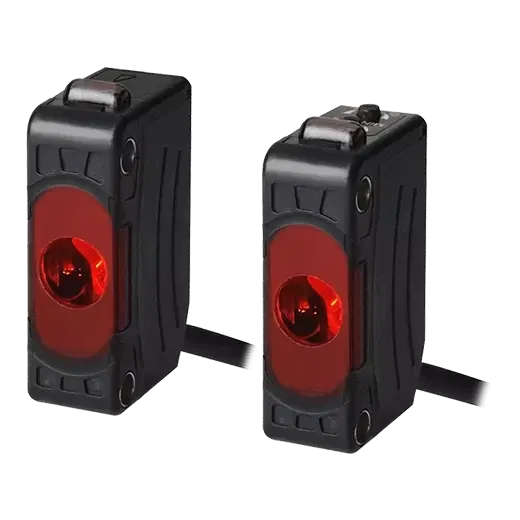

The BJ10M-TDT is a compact high-performance thru-beam photoelectric sensor with a 10-meter sensing range between separate emitter and receiver units. It offers high-speed response and reliable detection in dusty or high-ambient-light environments. NPN and PNP output options support integration with various control platforms, and the compact form factor suits installation in tight spaces on conveyor lines and automated machinery.
