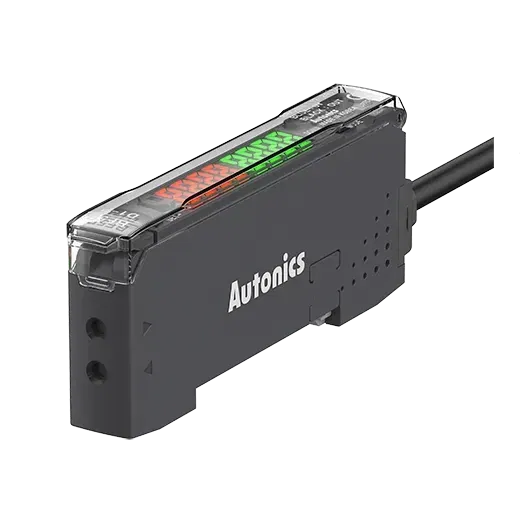

BF5R-D1-P - High Performance Single/Dual Digital Display Fiber Optic Amplifiers (to be discontinued)

Specifications

Type

Dual display

Weight

Approx. 138g(approx. 20g)

Material

Case: Polybutylene terephthalate, Cover: Polycarbonate

Accessories

Connector type wire(4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60 insulator out diameter1.25mm), Side connector

Initializing

Initializing as factory mode

Light source

Red LED(660m)

Communication

I2C(max. 8 units)

Energy saving

Normanergy saving nergy saving 2

Power voltage

12-24VDC (=) 10%(ripple P-P: max.10%)

Response time

50 1550, 4ms,10ms

Control output

PNP open collector

Display method

4-digit 7-segment LED

Operation mode

Light Oark ON(set by parameter)

Timer function

OFF, OFF Delay, ON Delay, One-shot(1 t500ms)

Current consumption

Max50A

Protection structure

IP40

Sensitivity adjustment

Manual Teaching(auto-tuning, 1-point, 2-point, positioning)? In multiple connection, batch teaching available

Environment_Ambient humidity

35 to 85% RH, storage: 35 to 85% RH

Mutual interference prevention

Max. 8 unit sets(automatically set regardless of response time)

Environment_Ambient temperature

10 t50 storage: -20 to 70

Environment_Ambient illumination

Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
