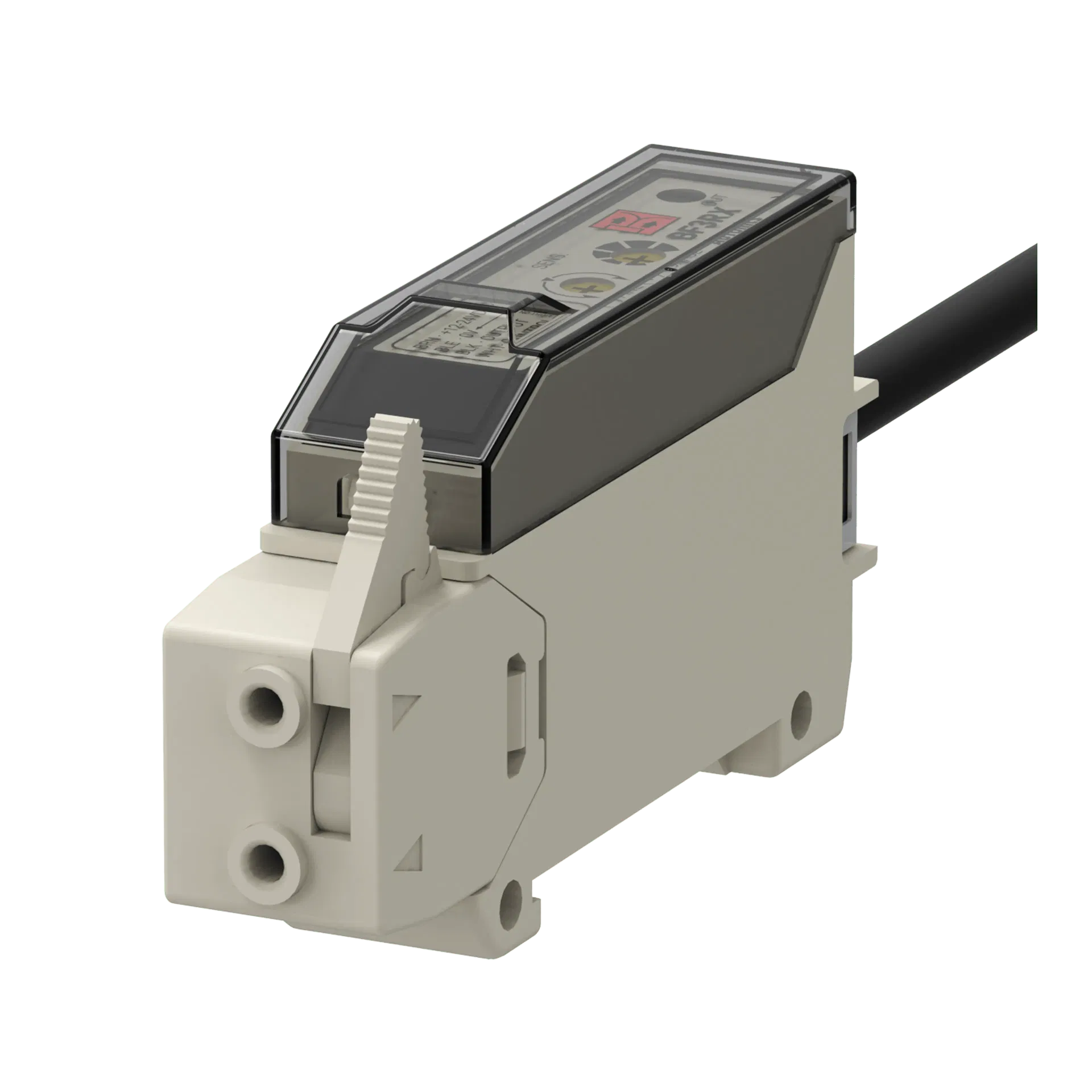

BF3RX - Dual Adjustment Fiber Optic Amplifiers (to be discontinued)
Fiber Optic Amplifier
- SKU:
- BF3RX
- Category:
- Proximity Sensors
- Brand:
$58.89
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Type
- Built-in twin volume type
- Weight
- Approx. 90g
- Material
- Case: Acrylonitrile butadiene styrene, Cover: Polycarbonate
- Accessories
- Sensitivity adjuster driver, Mounting bracket, Bolts, Nuts
- Light source
- Red LED(660m)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- NPN open collector
- Operation mode
- Light Oark ON(set by control wire)
- Cable specification
- 5mm, 4-wire, 2m(AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: 1mm)
- Current consumption
- Max. 40mA
- Sensitivity adjustment
- Sensitivity adjuster(coarse adjustment, fine adjustment)
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- 10 t50 storage: -25 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BF3RX is a dual-adjustment fiber optic amplifier designed to work with separate emitter and receiver fiber optic cables. It provides independent sensitivity adjustment for both thru-beam and reflected signals, enabling precise tuning for challenging detection tasks. This model is slated for discontinuation and is suited for small-object detection, mark sensing, and color differentiation in electronics manufacturing and precision assembly.
