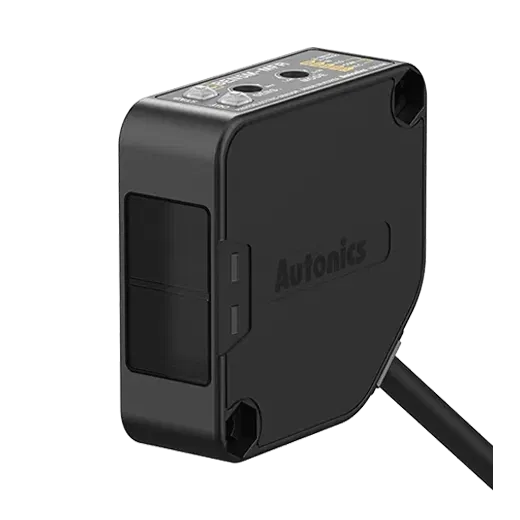

BEN5M-MFR - Universal AC/DC Photoelectric Sensors
Photoelectric Sensor
- SKU:
- BEN5M-MFR
- Category:
- Proximity Sensors
- Brand:
$79.99
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 208g
- Material
- Case,Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden
- Light source
- Infrared LED(940nm)
- Sensing type
- Retroreflective type(standard type)
- Power voltage
- 24-240VAC~ 1050z, 24-240VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 20ms
- Control output
- Relay
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque material of min. 60m
- Connection type
- Cable type(5, 2m)
- Sensing distance
- 5m(MS-2)
- Accessories_Common
- Adjuster driver, Fixing bracket, Bolts, Nuts
- Current consumption
- Max. 4VA
- Protection structure
- IP50
- Accessories_Individual
- Reflector(MS-2)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -20 to 65storage: -25 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BEN5M-MFR is a universal AC/DC photoelectric sensor with a mirror-reflective (retroreflective) sensing mode and a detection range of up to 5 meters. It provides reliable object detection by reflecting a light beam off a reflector, making it effective for detecting transparent or semi-transparent objects. The sensor supports NPN/PNP output selection and is designed for use in material handling, bottling, and web detection applications.
