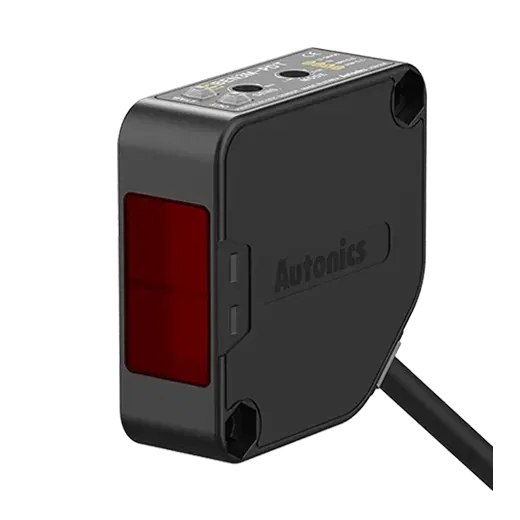

BEN3M-PDT - Universal AC/DC Photoelectric Sensors
Photoelectric Sensor
- SKU:
- BEN3M-PDT
- Category:
- Proximity Sensors
- Brand:
$167.44
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 200g
- Material
- Case,Case cover: Heat resistant Acrylonitrile butadiene styrene,Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,Nut: steel chromium molybden
- Light source
- Red LED(660m)
- Sensing type
- Retroreflective type(built-in polarizing filter)
- Power voltage
- 12-24VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- NPN, PNP open collector simultaneous output
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque material of min. 60m
- Connection type
- Cable type(5, 2m)
- Sensing distance
- 3m(MS-2)
- Accessories_Common
- Adjuster driver, Fixing bracket, Bolts, Nuts
- Current consumption
- Max50A
- Protection structure
- IP50
- Accessories_Individual
- Reflector(MS-2)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -20 to 65storage: -25 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BEN3M-PDT is a universal AC/DC photoelectric sensor capable of operating across a wide supply voltage range. It features a diffuse reflective sensing mode with a 3-meter detection range, NPN/PNP selectable output, and a compact rectangular housing. Suitable for detecting a broad range of objects regardless of surface color or material, it is commonly deployed in packaging, conveyor, and assembly line applications.
