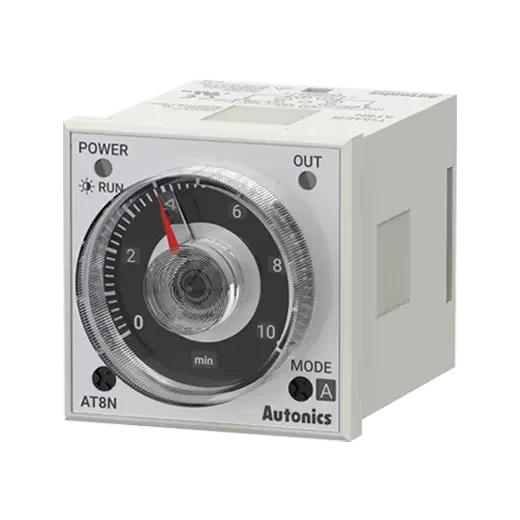

AT8N - Multi-Function Analog Timers
Analog Timer
- SKU:
- AT8N
- Category:
- Proximity Sensors
- Brand:
$39.17
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Terminal
- 8-pin plug
- Accessories
- Bracket
- Power voltage
- 100-240VAC~, 24-240VDC (=)
- Setting range
- 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to10 sec, 0.05 to 0.5 min, 0.1 to 1 min, 0.5 to 5 min, 1 to10 min, 0.05 to 0.5 hour, 0.1 to 1 hour, 0.5 to 5 hour, 1 to10 hour, 5 t50hour,10 t50 hour
- Control output
- Time limit DPDT (2c), Time limit SPDT (1c) + Instantaneous SPDT (1c)
- Time operation
- POWER ON START
- Operation method
- Time setting
- Output Operation
- POWER ON DELAY, FLICKER, INTERVAL
- Environment_Ambient humidity
- 35 to 85%RH, Storage: 35 to 85%RH (no freezing or condensation)
- Unit weight (packaged weight)
- 86.71 g ( 134.12 g)
- Environment_Ambient temperature
- 10 to 55?, storage: -25 to 65no freezing or condensation)
Description
The AT8N is a multi-function analog timer supporting multiple timing modes including ON-delay, OFF-delay, single-shot, and repeat cycle operation. It features analog dial-based time range selection, offering flexibility across a wide range of timing intervals. Housed in an 8-pin plug-in package, it is compatible with standard relay sockets and is suitable for general-purpose industrial timing control in machinery, HVAC systems, and process automation.
