ACL-20T - Common Terminal Blocks (Screwless Push-In Type)
Common Terminal Block
- SKU:
- ACL-20T
- Category:
- Proximity Sensors
- Brand:
$24.87
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx. 71g(approx. 42g)
- Material
- CASE, BASE: PC
- Common type
- Up +COM, Down -COM
- Rated current
- Max.10A
- Rated voltage
- 250DC (=), 250AC~50z
- Terminal type
- Screwless
- Terminal pitch
- 5.0mm
- Number of terminal
- 20 EA
- Dielectric strength
- 3,000VAC50z for 1 minute (between open terminals)
- Stripped wire length
- 8 to10mm
- Insulation resistance
- 1,000 M (50 VDC(=) megger)
- Applicable cable_Solid wire
- 0.6 t1.25mm(60only)
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Applicable cable_Stranded wire
- AWG22-16(030 t1.25mm sq)(60only)
- Environment_Ambient temperature
- -15 to 55, storage: -25 to 65
Description

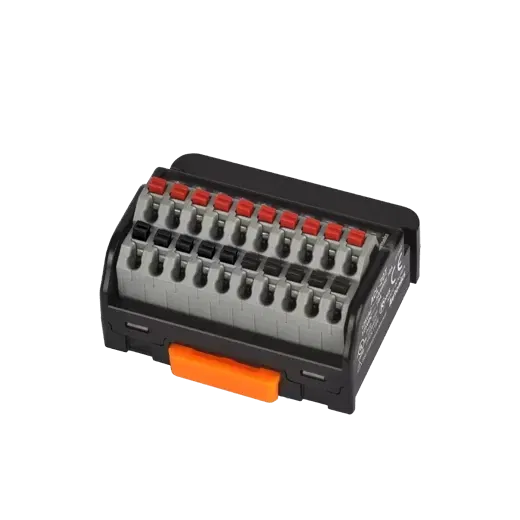

The ACL-20T is a screwless push-in common terminal block featuring a 2-position configuration for bridging multiple circuit conductors to a single common potential. Designed for DIN rail mounting, it enables rapid conductor termination without tools, supporting solid and stranded wire types. Ideal for grouping ground, neutral, or signal reference lines in control panels and automation enclosures.
