Nitto Hi Cupla Socket - 3/8" Male BSPT Threaded, Steel (Barb Lock), Quick Connect Coupling, MODEL NAME: 30SM-BL
Carbon Steel body | NBR (Buna-N) seal | 3/8" socket, Barb Lock Design
- SKU:
- 313103461
- Category:
- Steel Coupling
- Brand:
$16.45
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout

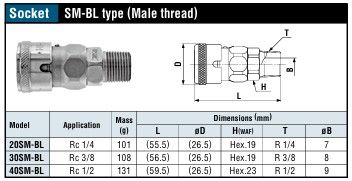

Specifications
- SIZE
- 3/8"
- SERIES
- HI CUPLA
- MODEL NAME
- 30SM-BL
- BODY MATERIAL
- STEEL
- SEAL MATERIAL
- NBR
- CONNECTION TYPE
- SOCKET
- END CONFIGURATION
- MALE BSPT
Description
Nitto Kohki Hi Cupla series quick-disconnect socket with a carbon steel body and 3/8" male BSPT connection. Part number 313103461. The socket uses NBR (Buna-N) seals for fluid compatibility. Features a barb lock (BL) design that secures the hose barb connection against accidental pull-out. Designed for push-to-connect/one-touch operation, compatible with Hi Cupla series mating components.
