Nitto Hi Cupla Socket - 1/4" Female BSPT Threaded, Stainless (Barb Lock), Quick Connect Coupling, MODEL NAME: 20SF-BL
Stainless Steel body | NBR (Buna-N) seal | 1/4" socket, Barb Lock Design
- SKU:
- 312102561
- Category:
- Stainless Steel Coupling
- Brand:
$64.25
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout

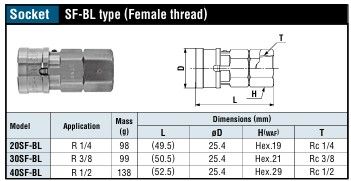

Specifications
- SIZE
- 1/4"
- SERIES
- HI CUPLA
- MODEL NAME
- 20SF-BL
- BODY MATERIAL
- STAINLESS
- SEAL MATERIAL
- NBR
- CONNECTION TYPE
- SOCKET
- END CONFIGURATION
- FEMALE BSPT
Description
Nitto Kohki Hi Cupla series quick-disconnect socket with a stainless steel body and 1/4" female BSPT connection. Part number 312102561. The socket uses NBR (Buna-N) seals for fluid compatibility. Features a barb lock (BL) design that secures the hose barb connection against accidental pull-out. Designed for push-to-connect/one-touch operation, compatible with Hi Cupla series mating components.
