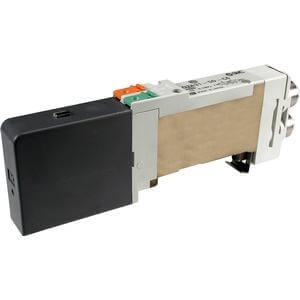

25A-SQ2000, 5-port Solenoid Valve

Description

The 5 port solenoid valves series SQ was designed for applications which demand high speed, high frequency, long life and a precise response time. The SQ uses cassette style valves and manifolds, making it simple to increase or decrease the number of stations on a DIN rail.  Valves are available with 12VDC or 24VDC rated voltage.  Actuation options include 5 port single solenoid, 5 port double solenoid, and dual 3/2 ported. - Fluid: Air/inert gas - Maximum operating pressure: 0.7MPa - Effective area mm² (Cv factor):0.40 to 0.71 - Coil rated voltage: 12, 24VDC - Power consumption (current):24VDC; 0.4W DC (17mA), 12VDC; 0.4W DC (34mA) - Ambient & fluid temperature: -10 to 50°C
