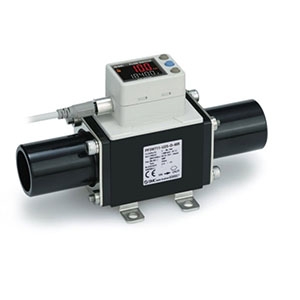

25A-PF3W7-U, Digital Water Flow Sensor, PVC Piping, 2-Screen 3-Color Display, IP65, 10-100 Lpm, Secondary Battery

Description

The 25A- series variations are compatible with secondary battery manufacturing for electronics, automotive, and other vehicle types.  25A-PF3W711-U25 is a digital flow sensor that constantly monitors water or coolant flow.  The -U variation features PVC piping for additional compatibility with deionized water and liquid chemicals.  The 2-screen, 3-color numerical display rotates in both CW and CCW directions, offering improved visibility in a range of orientations.  Two switch outputs, or one switch and one analog output are available.  Options include a mounting bracket and M8 lead wire.  This version does not offer a flow adjustment valve or temperature sensor.  PF3W is grease-free, IP65 rated, and CE and RoHS compliant. - Flow ranges (lpm): 10-100 - Port sizes: 25A (32mm O.D.) - Temperature rating: 0-70°C - Output options: NPN/PNP, (switch); 1-5V, 4-20mA - Accuracy: ±3% F.S. - Repeatability: ±2% F.S.
