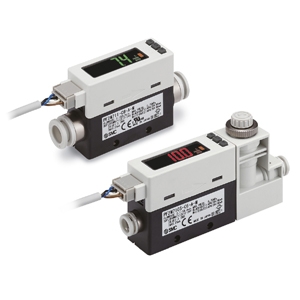

25A-PF2M7, Digital Air Flow with IO-Link, 2-Color Display, IP40, 0.01-200 L/min

Description

The 25A- series variations are compatible with secondary battery manufacturing for electronics, automotive, and other vehicle types. 25A-PF2M7 is a digital flow sensor compatible with air, nitrogen, argon or carbon dioxide. Output options include two switch signals, one switch with an analog signal, or IO-Link. 25A-PF2M7 is IP40 rated, and meets RoHS, UL and CE standards. - Flow ranges (lpm): 0.01-1, 0.02-2, 0.05-5, 0.1-10, 0.3-25, 0.5-50, 1-100, 2-200 - Fitting sizes (mm): Rc1/8, NPT1/8, G1/8, Rc1/4, NPT1/4, ø6, ø8 - Rated pressure range (MPa): -0.07 to 0.75 - Output options: IO-Link, NPN/PNP, 1-5V, 0-10V, 4-20mA - Specifications and dimensions are the same as standard model
