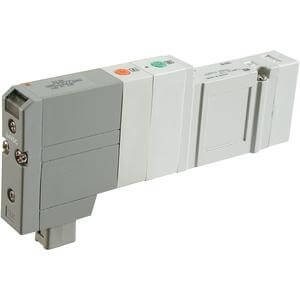

10-SV1000-4000, 5-Port Solenoid Valves, Clean Series

Description

The 10-SV Clean Room series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations have been simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids. - Clean room series - Operating pressure range: -100kPa to 0.7MPa - Response time ms (at 0.5MPa): 18 or less - Coil rated voltage: 12, 24VDC - Ambient & fluid temperature: -10 to 50° C - Enclosure: IP67 (based on IEC60529)
